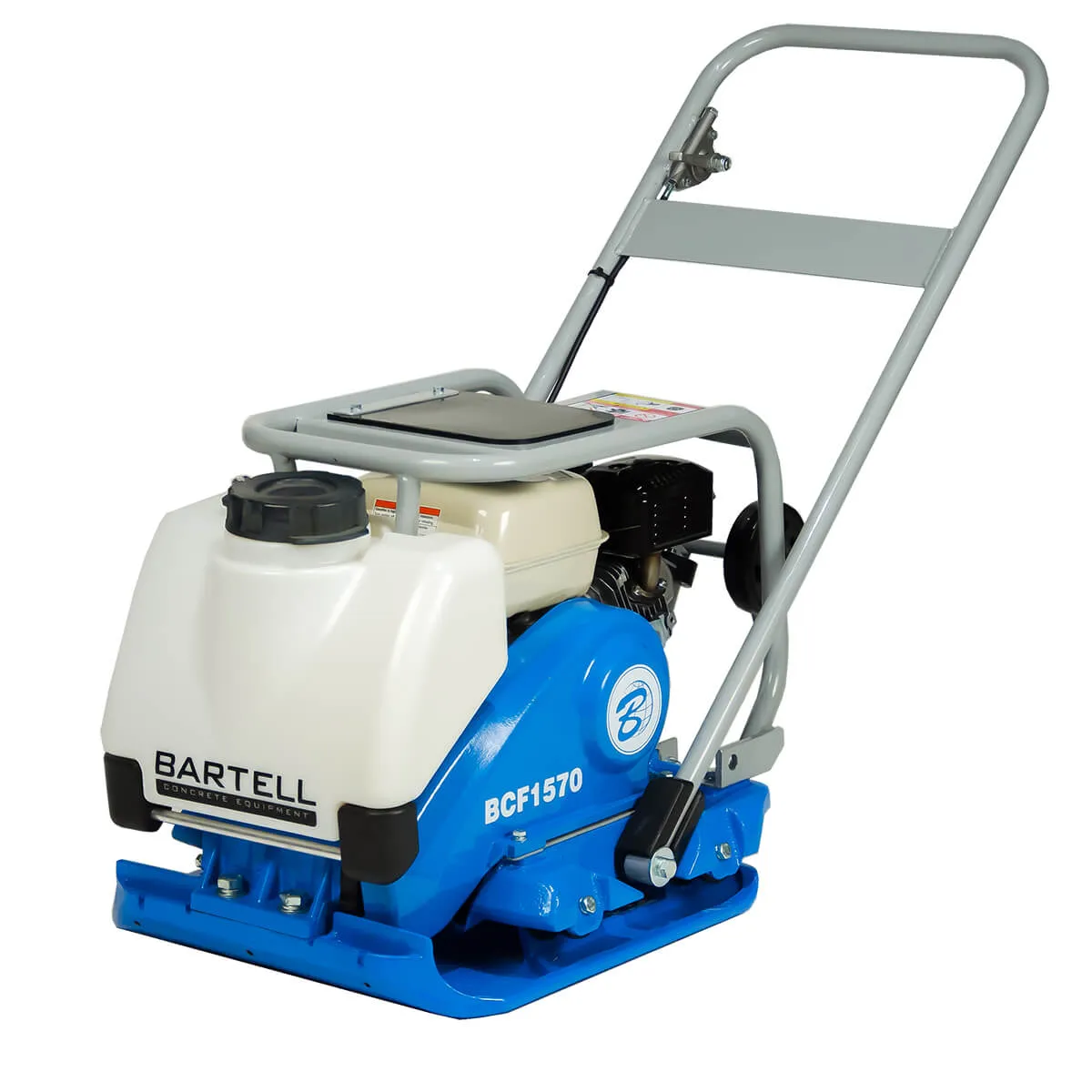

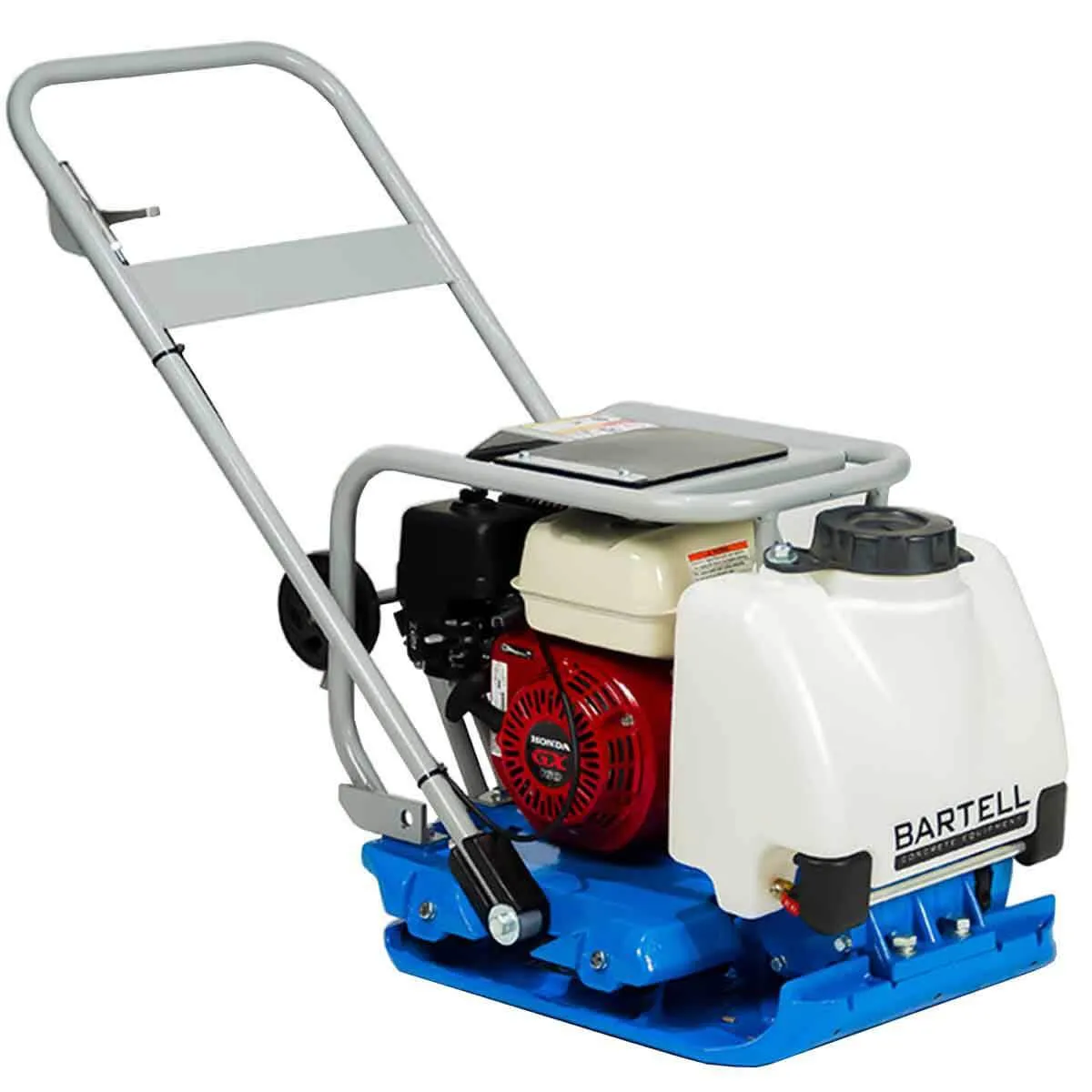

Introducing the Bartell BCF1570 20" X 21" Forward Plate Compactor. This robust compactor offers exceptional performance and features that make your job easier. With Bartell's innovative design, you can expect hard-hitting action and low maintenance.
One of the standout features of this compactor is its robust throttle controls. No more bending over or running alongside the machine to make it stop. The throttle controls are conveniently mounted and come standard, providing easy and efficient operation.

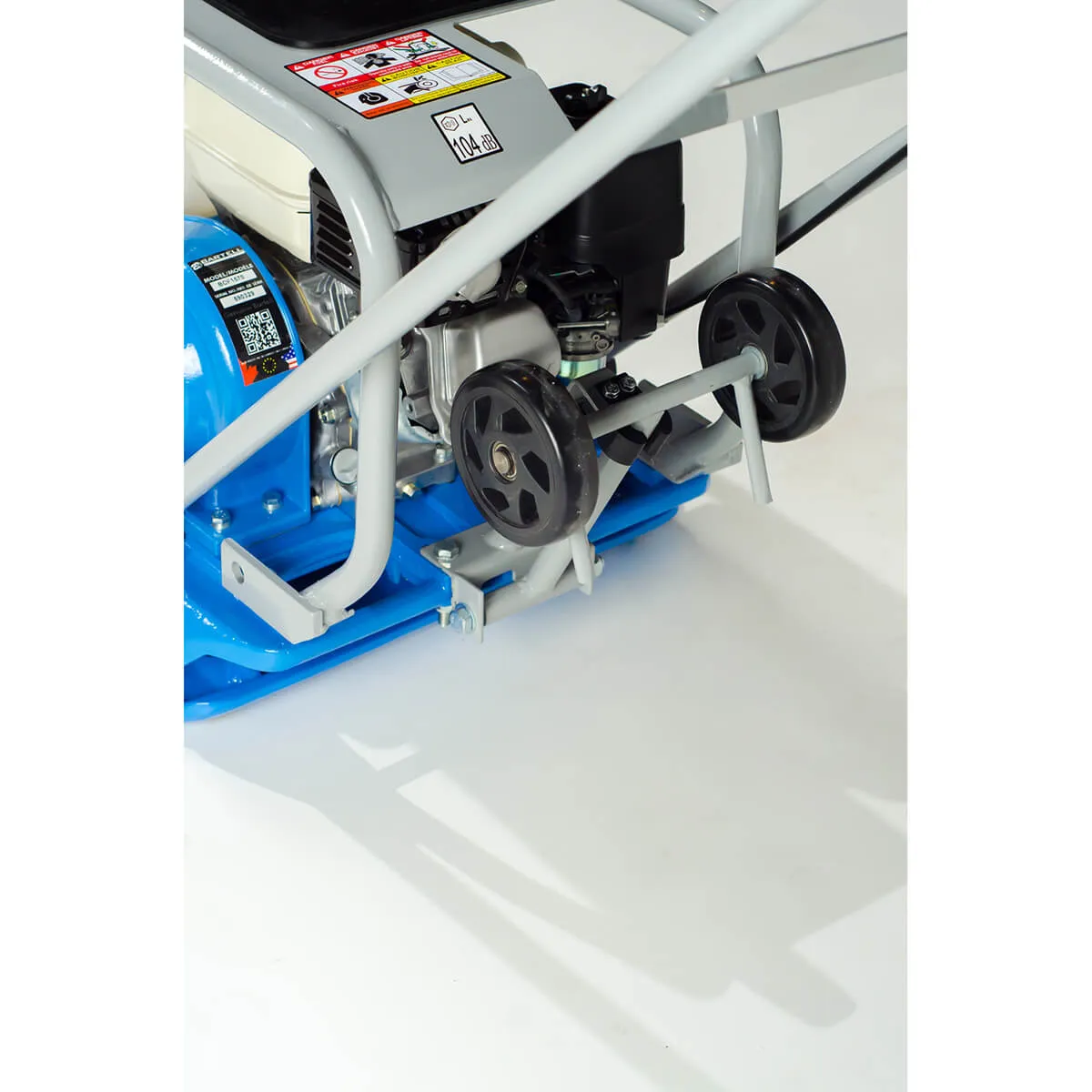

Moving the equipment to the job site is made simpler with the retractable wheel kits. When you need to transport the compactor, simply flip down the wheel kit and roll it. And when you don't need the wheels, they lock up securely, ensuring stability during operation.
In situations where the wheel kit may not be sufficient, the compactor also features a robust lifting bale. This makes it easier to move the equipment when the wheels are not suitable for the terrain.
The straight-edge plate design allows for effective compaction right up against an edge, ensuring thorough and precise results. Additionally, the compactor is equipped with sealed belt guards, which not only keep rocks out but also ensure proper cooling of the machine.
Built with a cast iron base material, the Bartell BCF1570 offers durability and long-lasting performance. It also includes a standard water tank, providing added convenience for compaction projects that require water.
With its robust features and high-quality construction, the Bartell BCF1570 20" X 21" Forward Plate Compactor is an excellent choice for professionals seeking a reliable and efficient compaction solution.
Specification | Details |
---|---|
Horse Power | 4.8 hp (3.6 Kw) |
Motor | Gas |
Plate Size | 20" x 21" (500 x 525 mm) |
Centrifugal Force | 3461 lb (15 kN/1570 kg) |
Max Travel Speed | 82 ft./min. (25 m/min) |
Dimensions | 44" x 20" x 33" |
Weight | 210 lb (95 kg) |
