Specifications

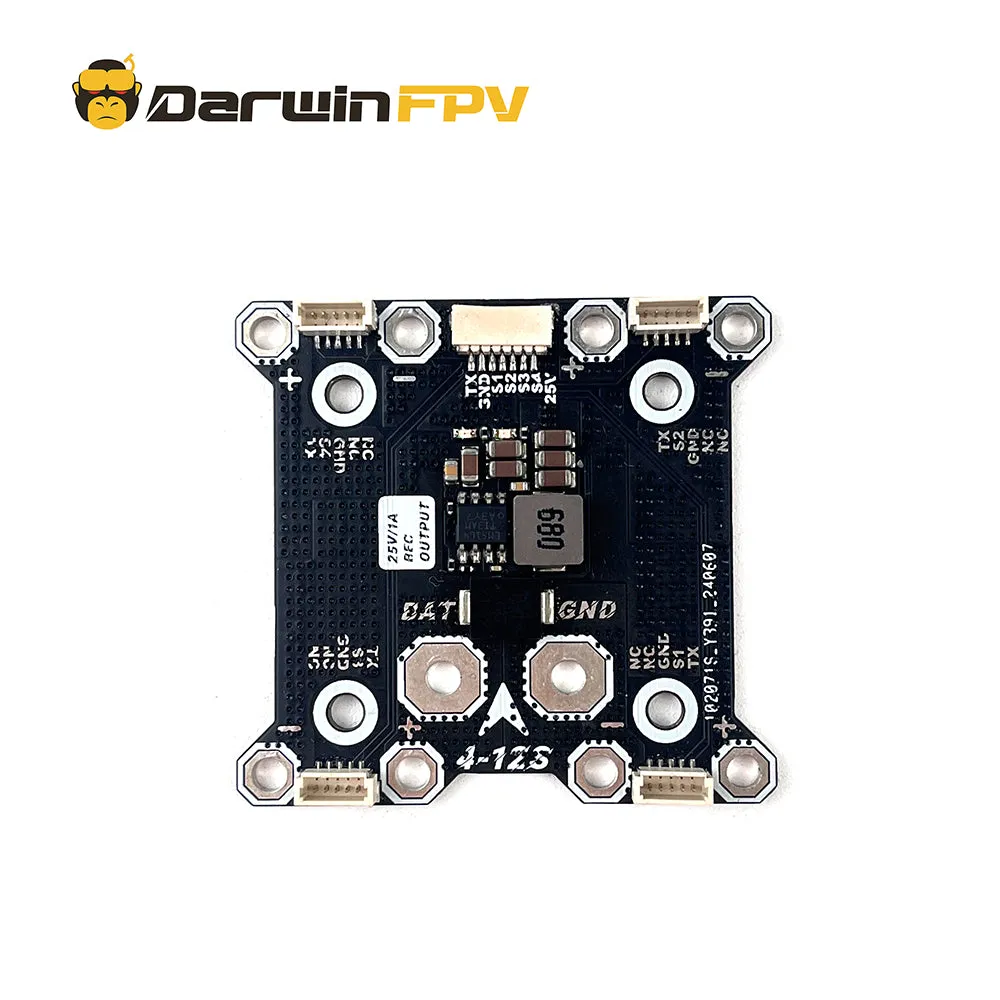

Model: 25V BEC power distribution board
Input Voltage : 4-12S Lipo
Output Voltage: 25.2V
Output Current: 1A
Dropout Voltage : 2V(Input voltage ≥ 27V is required to output 25.2V stably)
Indicator Lights : 2 PCS (Red light: input indication, green light: output indication)
Input polarity protection(anti-reverse connection) : Non
ESC Connection Quantity: Power/Signal/Telemetry x 4
Installation Hole Distance: 30x30mm
Dimension : 48.5x51.7x6mm

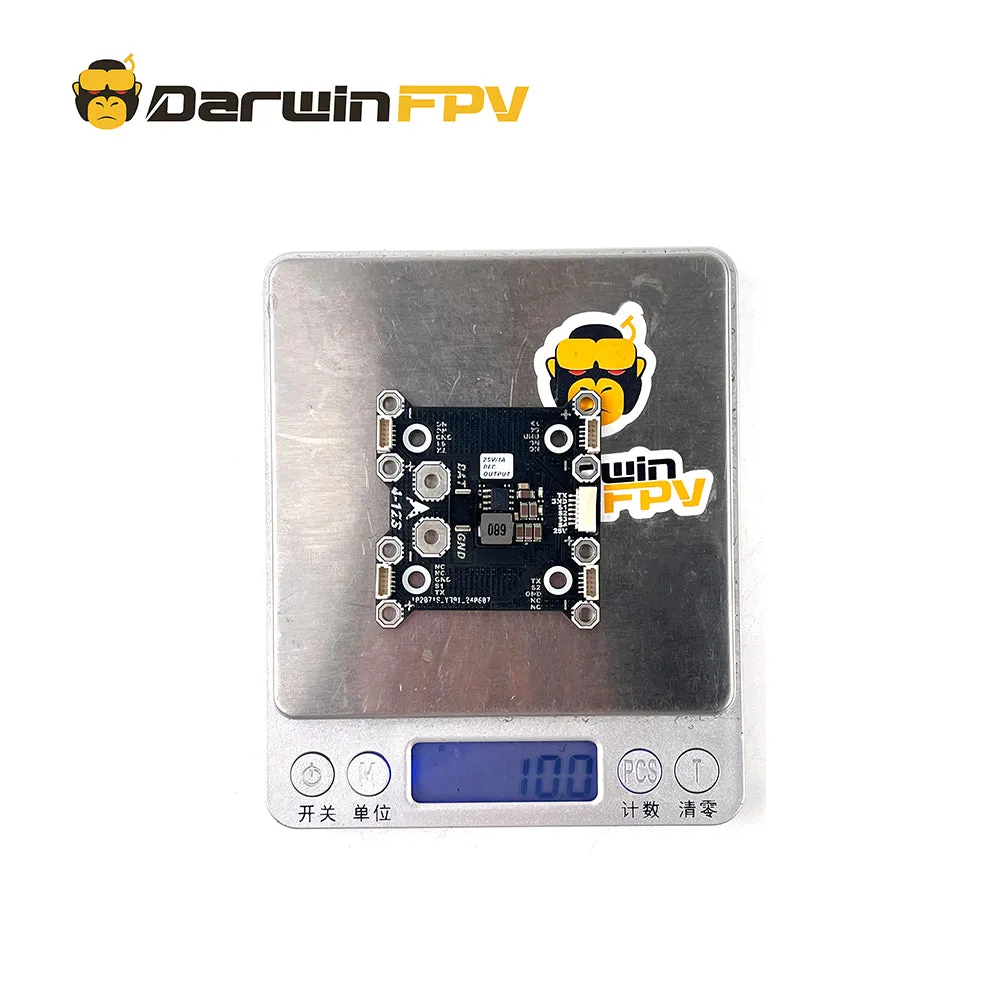

Weight : 10g

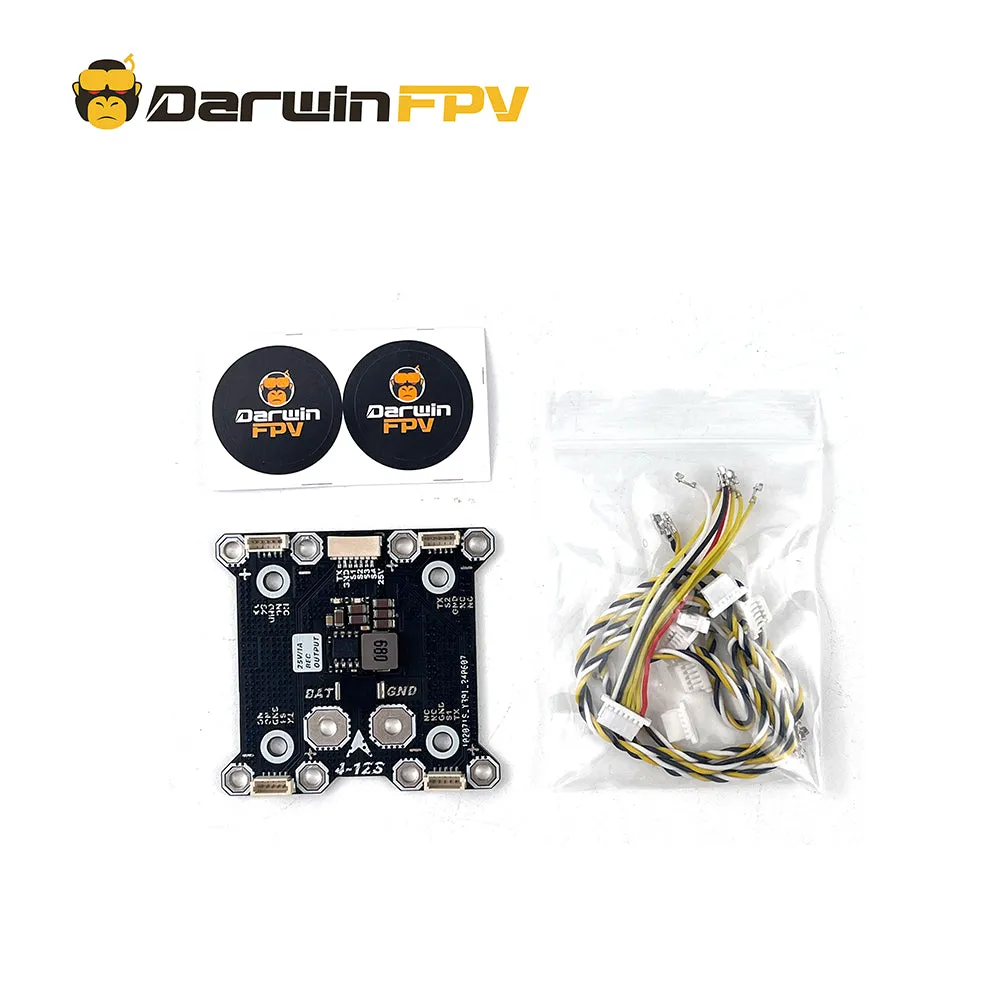

Packing List:

1 × DarwinFPV 25V BEC Power Distribution Board
4 × ESC Wire（SH1.0-5P）
1 x FC Wire
4 × SH1.0-5P Plastic Shell
1 × Sticker
