Overview

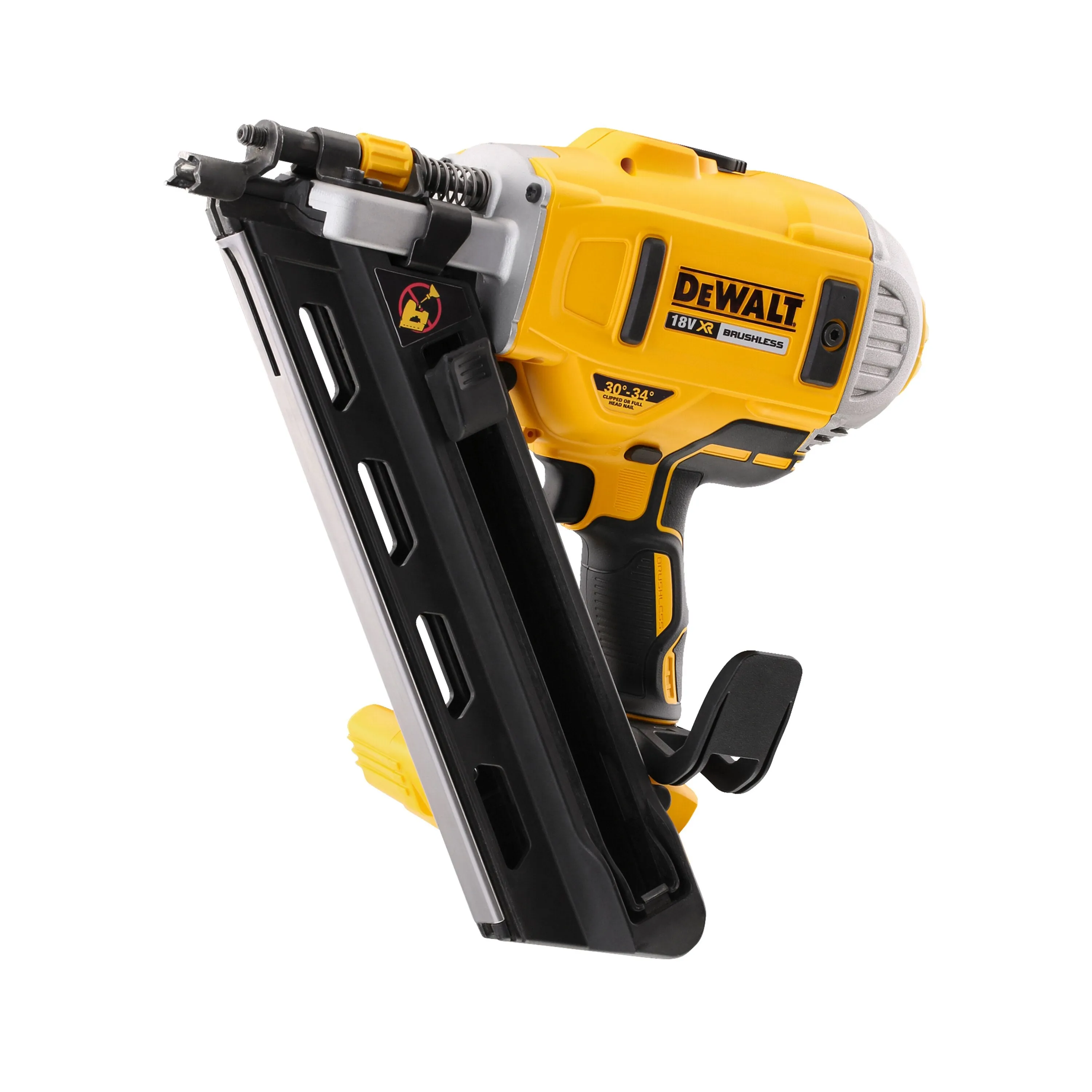

DeWalt’s 90mm cordless first fix nailer is is an essential fastening tool for a host of applications such as timber frame erection, stud work and roof battens.
The nailer has an ergonomic design, which fits easily between a 400mm centre stud.
The framing nailer is gasless, features tool-free maintenance, and has a versatile 30°-34° magazine angle.
Its brushless motor offers optimal power to fire 90mm ring shank nails into soft wood and 63mm into hard woods.
There are two modes; sequential operating mode and bump operating mode. Sequential operating provides precision placement, while bump operating mode speeds up production.
Available as a set or body-only.

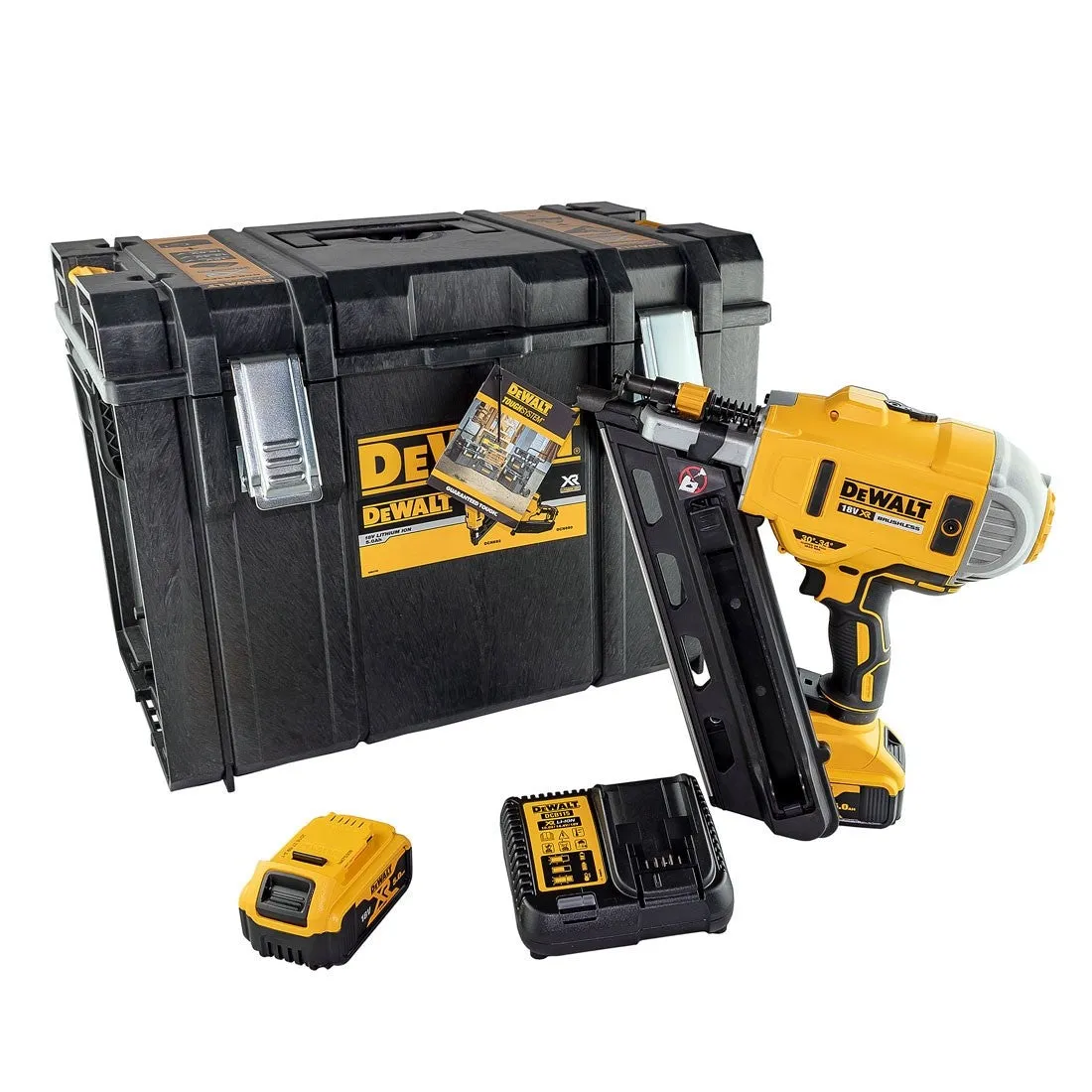

Set Includes:
1 x Reversible belt hook (as standard)
1 x Non-mar tip (as standard)
2 x 5.0Ah XR Li-Ion battery packs with state of charge indicator
1 x Multi-voltage XR charger
1 x Heavy duty carrying case
Features
Cordless design allows you to work without the inconvenience and safety risk of trailing lead
Two speeds - or power levels - to optimise the nailer for firing all lengths of nails
The sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed
Reversable belt/rafter hook provides increased portability and versatility on the job-site
Benefit from longer runtime, quicker readiness to fire, less recoil and more durability when firing short nails
Tool free stall/jam clearance minimises user down time
Ergonomic tool design allows the nailer to fit easily between a 400mm centre stud
User can engage contact trip lock-off and prevent accidental dis-charge of fastener
Versatile 30 - 34 degree magazine angle will accept most clipped head, and off centre round head paper tape or wire weld collated framing nails
18V XR Li-Ion Two Speed Framing Nailer featuring BRUSHLESS motor technology and XR 5.0Ah battery packs
BRUSHLESS motor technology offers the power to fire a 90mm Ring Shank nail in Soft Wood and 63mm into Hard Woods
Depths can be easily adjusted using the thumb wheel depth adjuster
Increased visibility and durability along with protection for work-surface from the non-mar contact-trip
Mechanical rather than gas operation offers consistent performance at temperature between -20 and 50 degrees Celsius and minimal cleaning/service requirements
Gas free operation offers a significant saving in running costs
Class leading vibration and sound figures, offer fantastic user protection
Dry fire lockout ensures that the tool is protected from firing without nails in the magazine
Specification
Input Power: 18 Volt
Nail Diameter: 2.8-3.3mm
Nail length: 50-90mm
Magazine Capacity: up to 55 nails
Firing mode: Bump and Sequential
Weight: 4.1kg
