Overview

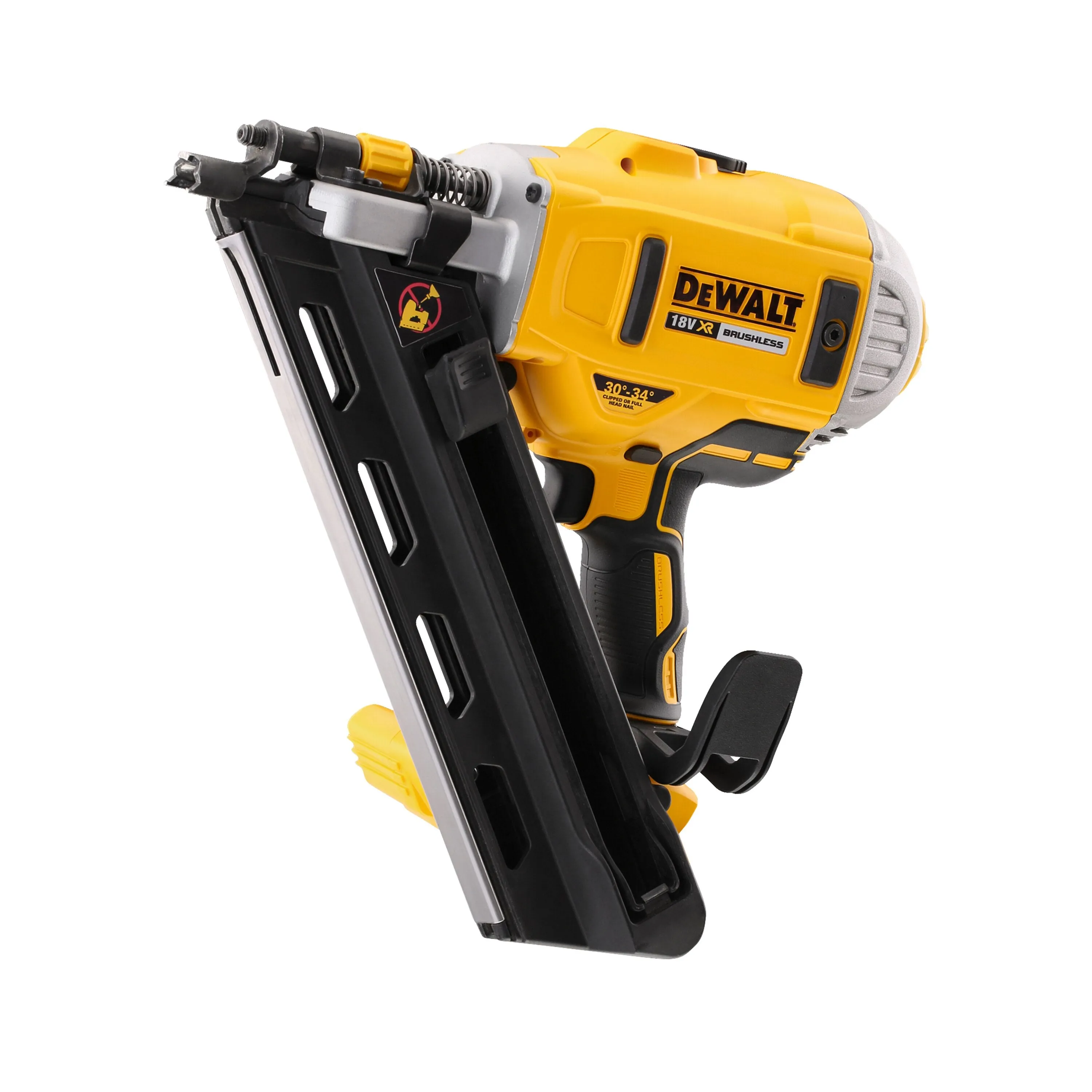

DeWalt’s 90mm cordless first fix nailer is is an essential fastening tool for a host of applications such as timber frame erection, stud work and roof battens.
The nailer has an ergonomic design, which fits easily between a 400mm centre stud.
The framing nailer is gasless, features tool-free maintenance, and has a versatile 30°-34° magazine angle.
Its brushless motor offers optimal power to fire 90mm ring shank nails into soft wood and 63mm into hard woods.
There are two modes; sequential operating mode and bump operating mode. Sequential operating provides precision placement, while bump operating mode speeds up production.
Available as a set or body-only.

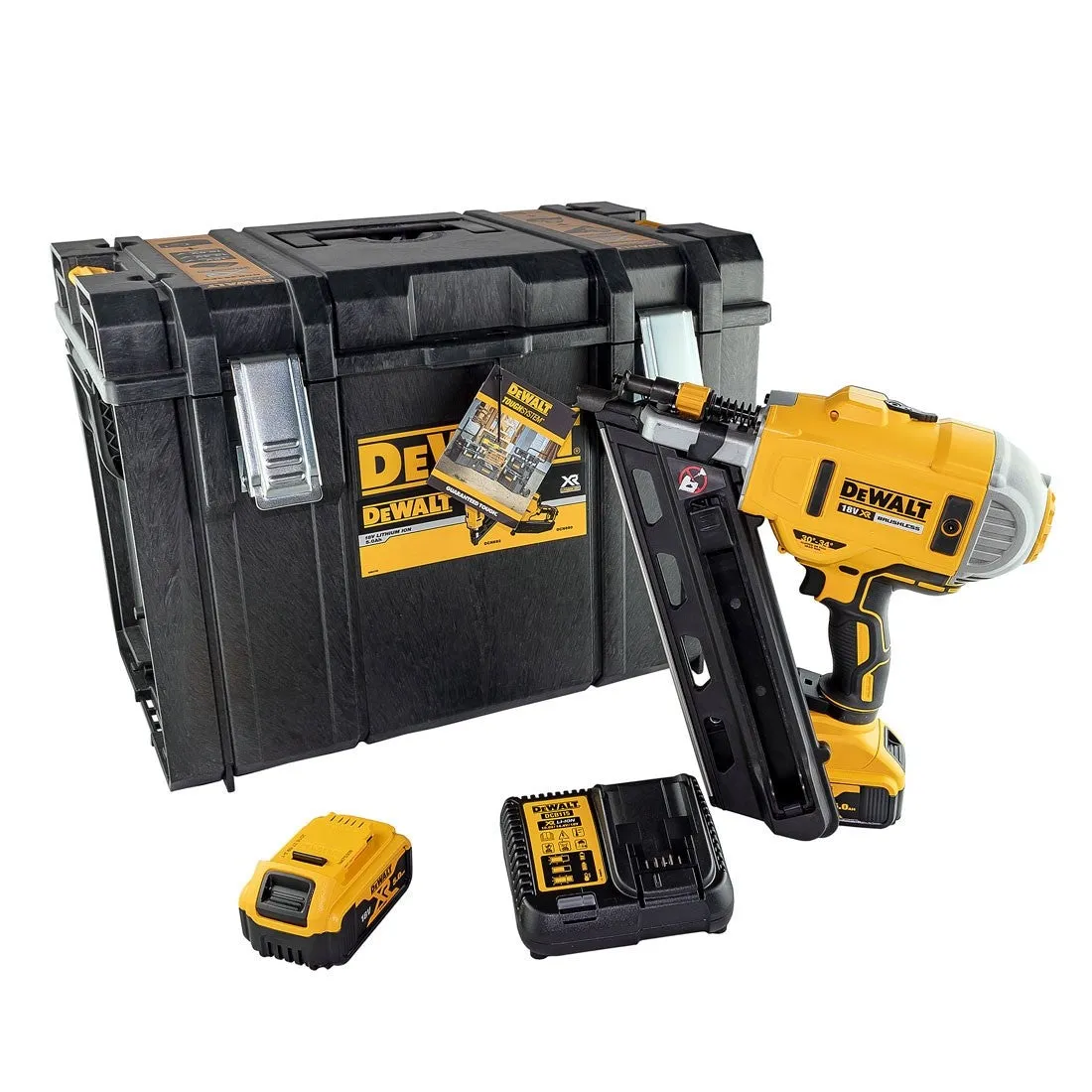

Set Includes:
-
1 x Reversible belt hook (as standard)
-
1 x Non-mar tip (as standard)
-
2 x 5.0Ah XR Li-Ion battery packs with state of charge indicator
-
1 x Multi-voltage XR charger
-
1 x Heavy duty carrying case
Features
-
Cordless design allows you to work without the inconvenience and safety risk of trailing lead
-
Two speeds - or power levels - to optimise the nailer for firing all lengths of nails
-
The sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed
-
Reversable belt/rafter hook provides increased portability and versatility on the job-site
-
Benefit from longer runtime, quicker readiness to fire, less recoil and more durability when firing short nails
-
Tool free stall/jam clearance minimises user down time
-
Ergonomic tool design allows the nailer to fit easily between a 400mm centre stud
-
User can engage contact trip lock-off and prevent accidental dis-charge of fastener
-
Versatile 30 - 34 degree magazine angle will accept most clipped head, and off centre round head paper tape or wire weld collated framing nails
-
18V XR Li-Ion Two Speed Framing Nailer featuring BRUSHLESS motor technology and XR 5.0Ah battery packs
-
BRUSHLESS motor technology offers the power to fire a 90mm Ring Shank nail in Soft Wood and 63mm into Hard Woods
-
Depths can be easily adjusted using the thumb wheel depth adjuster
-
Increased visibility and durability along with protection for work-surface from the non-mar contact-trip
-
Mechanical rather than gas operation offers consistent performance at temperature between -20 and 50 degrees Celsius and minimal cleaning/service requirements
-
Gas free operation offers a significant saving in running costs
-
Class leading vibration and sound figures, offer fantastic user protection
-
Dry fire lockout ensures that the tool is protected from firing without nails in the magazine
Specification
-
Input Power: 18 Volt
-
Nail Diameter: 2.8-3.3mm
-
Nail length: 50-90mm
-
Magazine Capacity: up to 55 nails
-
Firing mode: Bump and Sequential
-
Weight: 4.1kg
