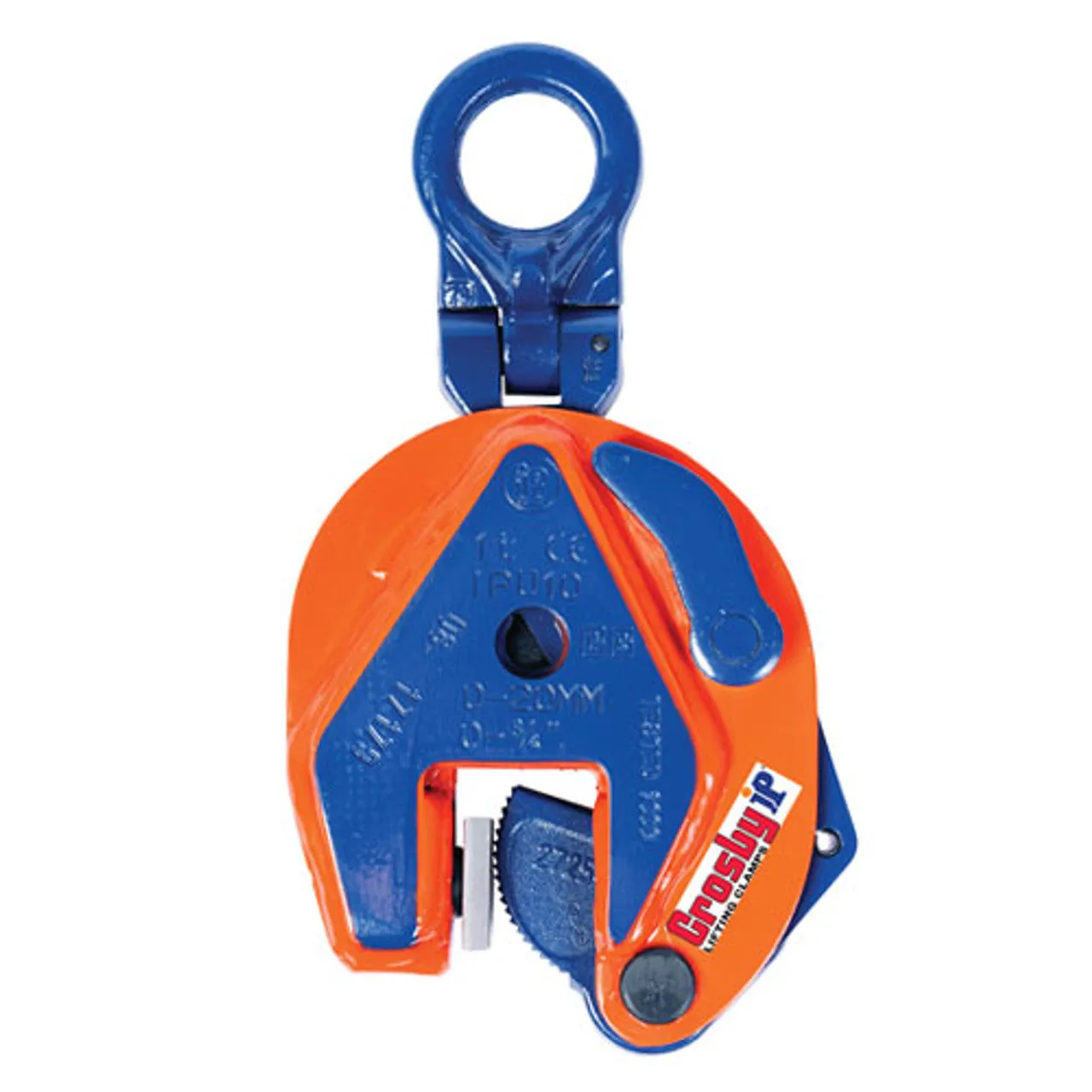

Universal - for lifting in any direction

• Available in capacities of . 5 thru 30 metric tons (higher working load limits are available upon request)
• Wide variety of jaw openings available: 0" to 6.13"
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required
• Individually proof tested to 2 times the working load limit with certification
• Company name (Crosby IP), logo, working load limit, and jaw opening permanently stamped on body
• Each product is individually serialized, with the serial number and proof load test date stamped on body. User manual with test certificate is included with each clamp
• Available in a variety of styles:
  • IPU10 - Standard clamp for materials with a surface hardness to 363HV10 (345 HB)
  • IPU10J - Larger jaw opening
  • IPU10S - For use with stainless steel material
  • IPU10H - For use with materials with a surface hardness to 472HV10 (450 HB)
• Full 180 degree turning range for material transfer, turning, or moving
• Lock open, lock closed ability with latch for pretension on material and then release of material
• For use with materials with a surface hardness to 279HV10. Only 5% minimum WLL is needed
• Maintenance and repair kits are available
• Minimum WLL is 5% of maximum WLL for .5t IPU10 only
• Minimum WLL is 10% of maximum WLL for all other IPU10 clamps.
