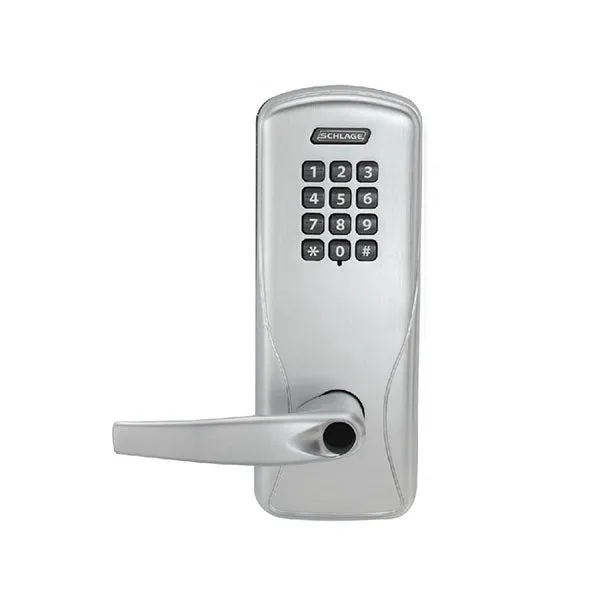

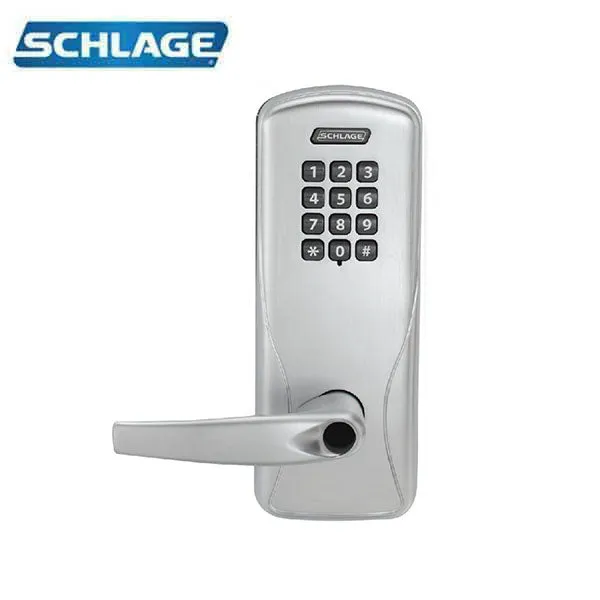

The CO Series provides ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. Within this group is CO-100, a standalone lock that is manually programmable. User rights are stored on the lock with unique PIN codes assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.

More Information Below

SPECIFICATIONS:

LOCK FUNCTION	Storeroom
DOOR THICKNESS	1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1 ⁄8" increments)
BACKSET	2 3/4″ Standard
HANDING	Left Hand Reverse
Lever Style	Rhodes
STRIKE	Standard: 1 3⁄16" lip, ANSI, 1 1⁄4" x 4 7⁄8"
KEYPAD	CO-100 uses 3-6 digit PIN codes as credentials. Administrator level users can program it right at the door to add or delete user PIN codes or change preferences or functions at any time.
POWER	4 AA batteries (standard off the shelf: included)
INTERCHANGEABLE CORE	Schlage 6-pin Everest 29 S123 keyway Conventional cylinder not included. Cylinder NOT Included
PROGRAMMABLE	Locking modes, event schedules, group, individual, master, management, passage, emergency service codes. Lockout, remote override capability, and allowable entry time (3, 10, or 15 seconds), are programmable through the keypad.
USER CODES	support 500 users with 3-6 digit unique codes
WEATHERPROOF	-31° to 151°F (-35° to 66°C)
FINISH	626 Satin Chrome
