Product Details
＋

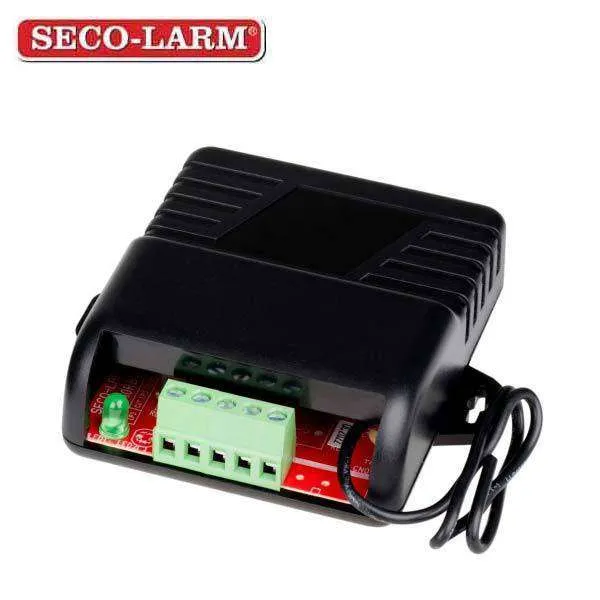

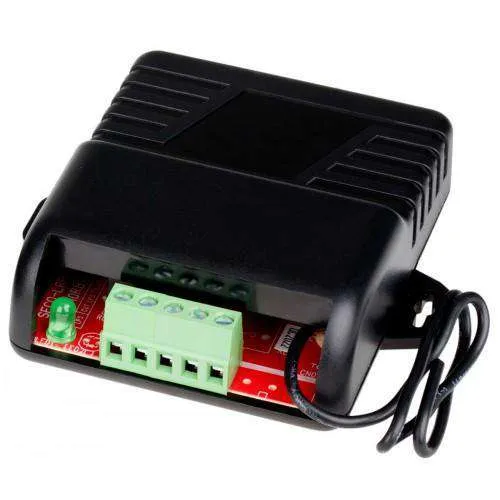

SLM-SK-910RBQ
- Compatible with all ENFORCER 315MHz transmitters
- Use to control garage door opener, house lights, alarm control panel, or other devices via remote control
- 10A @ 24VDC per channel, NO/NC/COM
- Frequency 315MHz
- This revolutionary receiver incorporates:
- Hi-Q SELECTIVITY and a CODING IC for rejecting unwanted RF signals.
- HIGHER SENSITIVITY for greater operating distances.
- UNSURPASSED ANTENNA MATCHING CAPABILITIES so the receiver is less affected by how and where mounted.
- GREATER TUNING STABILITY so the receiver's frequency remains unaffected by shock and vibration.
- LED indicates RF reception, learn mode entered, transmitter learned, memory cleared
- Mode switch for easy transmitter learning
- Learns up to 15 transmitters
-
5 Output modes (programmable):
-- 4-Second momentary,
-- 1-Second momentary,
-- Toggle,
-- Validity: receiver outputs for as long as the transmitter button is pressed,
-- Latch - Screw terminals for simple connection
- Accepts ENFORCER fixed code or CODEBUMP transmitters
| Type | WIRELESS - Single-Channel RF Receiver |
| Operating voltage | 11~24 VAC/VDC |
| Range | Up to 500' (150m) with SECO-LARM transmitter. Range will vary. |
| Relay Rating | Form C dry relay contact (NO/NC/COM); max 10 Amp at 24VDC per channel |
| Current Draw | 8mA@12VDC (standby), 30mA/channel @12VDC (activated) |
| Extended Range Antenna Compatible | Yes (SK-91ERSD) |
| Connectors | 5 Quick-connect screw terminals ( , -, with NO/NC/COM) |
| Dimensions | 3-1/8" x 2-9/16" x 1" (80 x 65 x 25 mm) |
