Product Details
＋

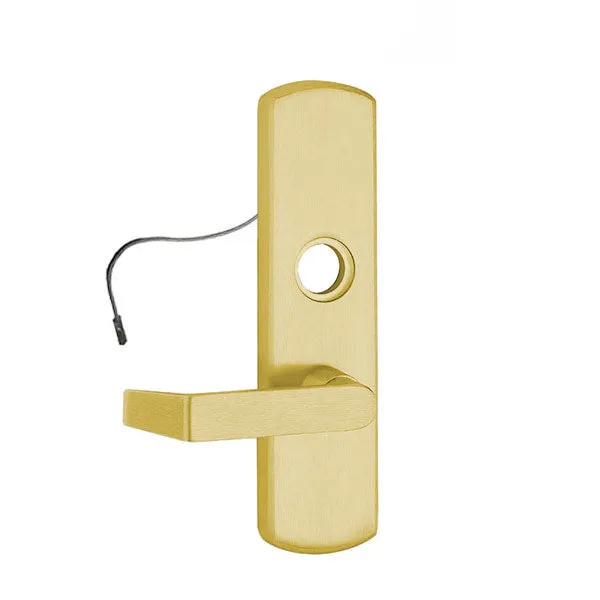

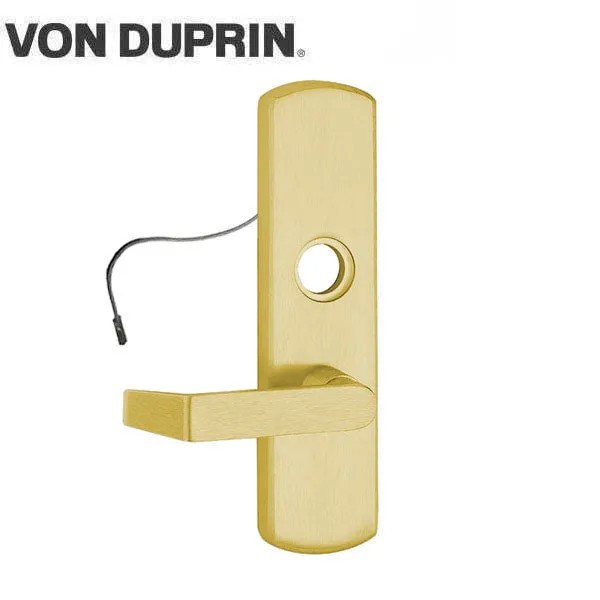

E996L Electrified Breakaway lever trim provides remote locking and unlocking capabilities while incorporating the patented Breakaway trim design. The 24VDC solenoid can be energized from a distant controller, thus allowing access control of the opening. The control of stairwells in high-rise buildings is a common application for this trim. When electrically unlocked the unit operates as a normal lever trim. When electrically locked, the lever feels locked, but when more than 35 pounds of torque pressure is applied, the Breakaway lever feature engages.
- Device Type: For Mortise Devices
Specifications
| Trim | Electronic Lever Trim |
| Device functions | Lever |
| Function description | Key locks and unlocks |
| ANSI function | 08 |
| Device compatibility | 98/99 Series Trim |
| Escutcheon plate size |
2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm) |
| Projection | 2 7⁄8" (73mm) |
| Handing | Right Handed/reversible |
| Power Input | 24 VDC |
| Cylinder type | 1 1⁄4" Mortise |
Downloads
