Dovetail Groove for ASIAIR Plus or ASIAIR Mini

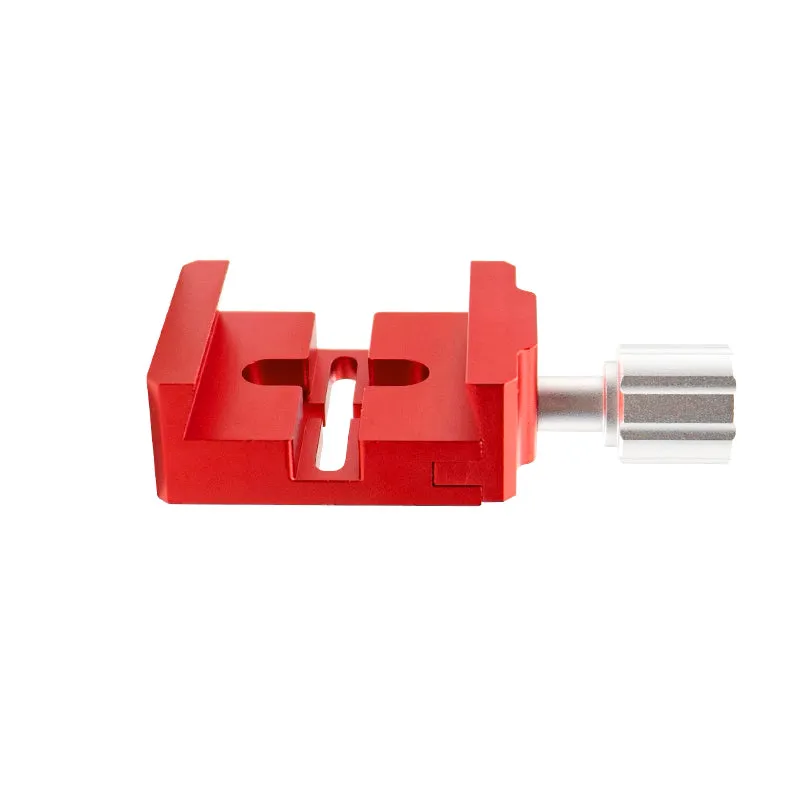

The dovetail groove is designed for ASIAIR PLUS to connect Vixen dovetail plate. It can help achieve more convenient and flexible installation methods compared to the original dovetail plate of ASIAIR PLUS.

Connection tips:

1. Remove the original dovetail plate of ASIAIR.

2. Fix the dovetail groove to ASIAIR with the screws you just take off from the plate.

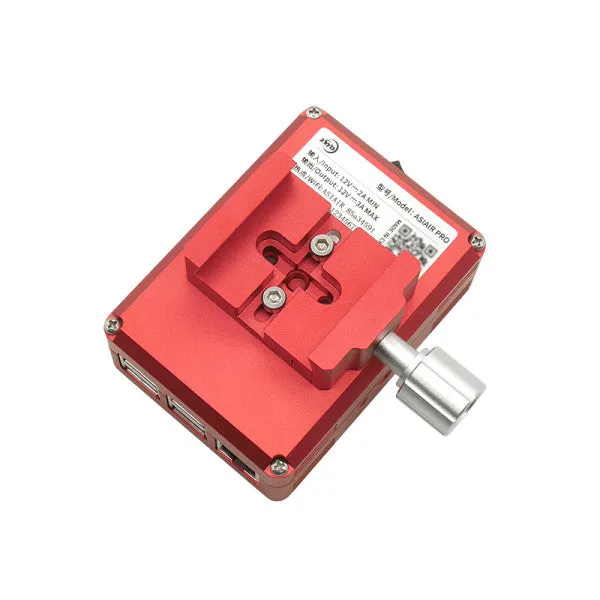

3. It’s recommended to put the bolt towards the box side as shown in the pictures above and not to block the USB ports and status indicators.
