Product Details
＋

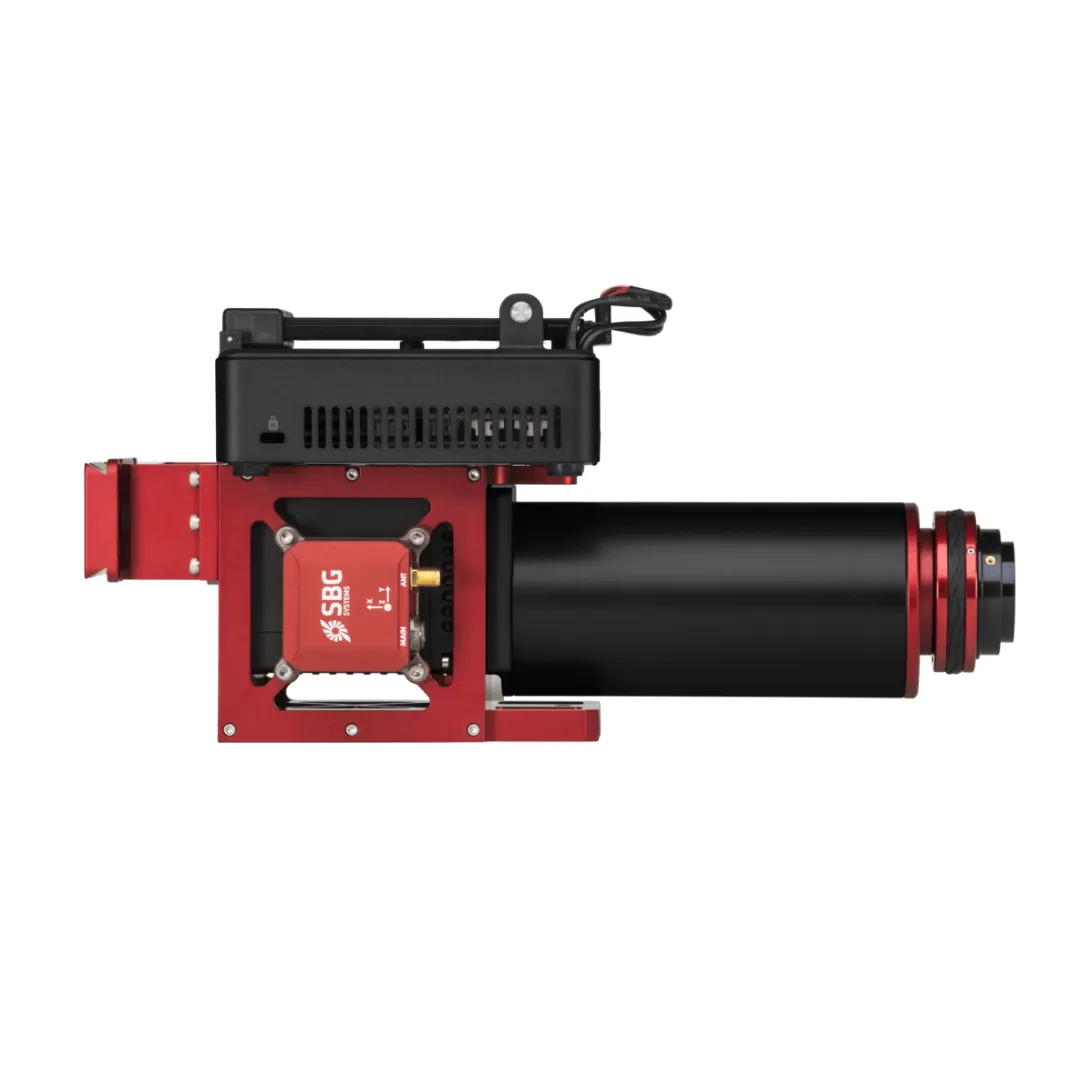

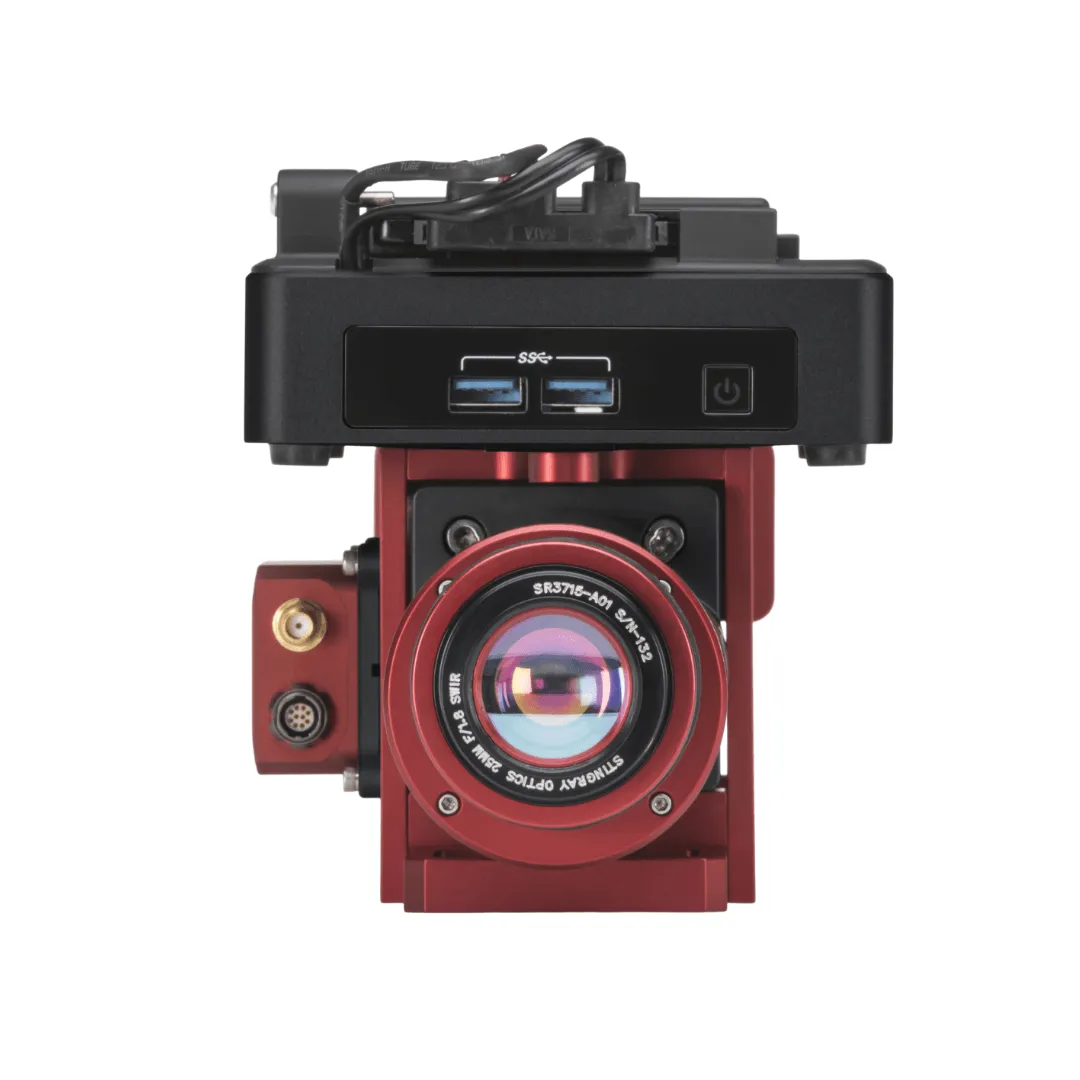

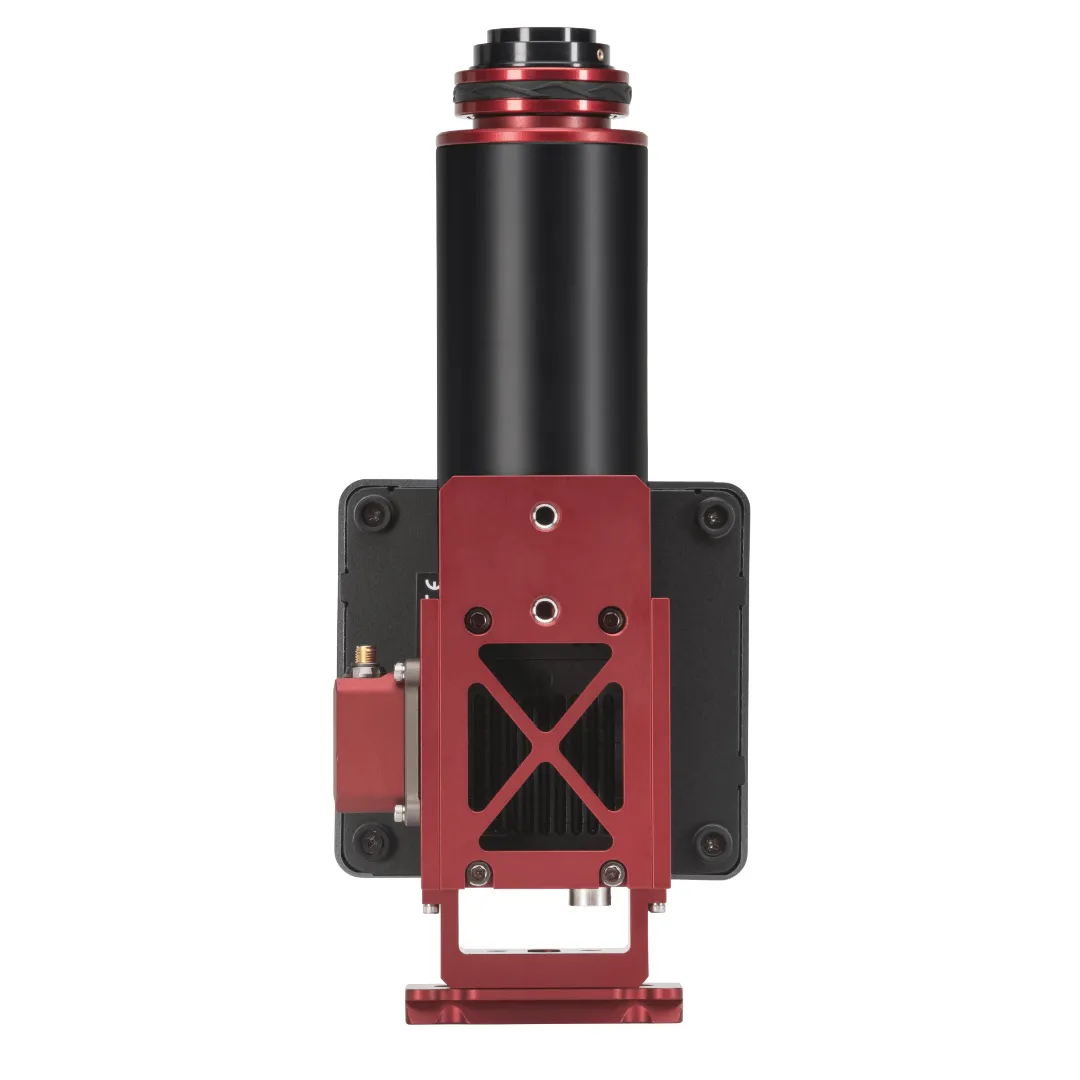

PIKA IR-L Hyperspectral Camera by Resonon
The Pika IR-L imager is a high spatial and spectral resolution hyperspectral camera for the Near-Infrared (NIR) spectral range (925 – 1700 nm). The small size and mass make it well suited for airborne applications, and it also features the highest spectral resolution of all of our IR cameras. The Pika IR-L can be used in our airborne, laboratory, and outdoor hyperspectral systems, as well as standalone or integrated into your system with our programming guidance document.
Features
Spectral Range: 925 – 1700 nm
640 Spatial Pixels Per Line
470 Spectral Channels Per Line
3.8 nm Spectral Resolution (FWHM)
Objective Lenses for Pika L
Please contact us for additional lense options for the Pika IR-L
| Specifications | |
|---|---|
| Spectral Range (nm) | 925 - 1700 |
| Spectral Channels | 470 |
| Spectral Resolution - FWHM (nm) | 3.8 |
| Spatial Pixels | 640 |
| Max Frame Rate (fps) | 176 |
| f/# | 1.8 |
| Interface | GigE |
| Dimensions (mm) | 210 x 68 x 63 |
| Weight,(kg) | Approx 2.4 |
| Certifications | CE, RoHS 3 |
